- Rated voltage: 220-230 / 380-415 VAC
- Maximum current: 100A -> 2500A
- Rated frequency: 50Hz
- Degree of protection: IP3x -> IP54
- Standard: IEC60439-1, IEC60529

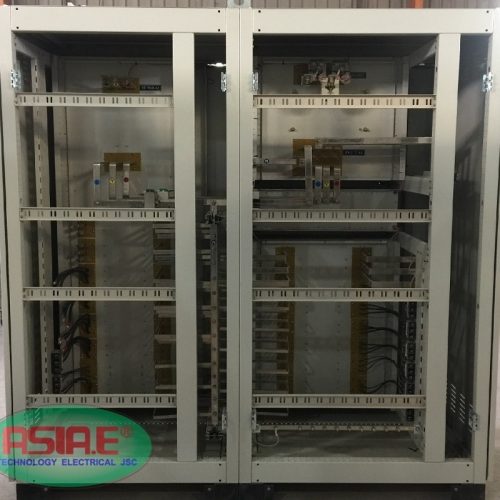

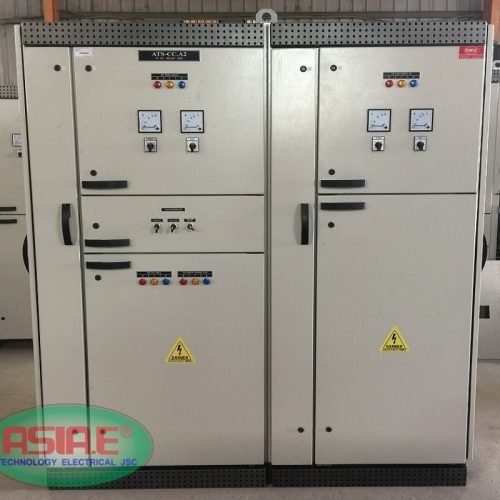

ATS electrical cabinet works automatically to switch between main source and backup power. The main source is usually the power source, the standby power is usually a generator or a UPS. When the main source is lost or having trouble (phase loss, reverse phase, overvoltage, low voltage,… ) ATS will automatically supply the backup call signal and will switch to backup source for about 5-10s. When the main source recovers, ATS will wait 10-30s to verify the main source is stable and automatically switch the power back on. Backup power will automatically turn off after idling 1-2 minutes.
ATS cabinets are used in commercial centers, office buildings, condominiums, hospitals, ports, airports or in industrial zones such as factories, industrial workshops,… where there are required additional loads. Uninterruptible power supply, high power supply reliability. ATS cabinets are also used in civil or industrial applications where there is a sudden power outage.
ASIA.E manufactured ATS electrical cabinets are capable of operating automatically or manually. Can flexibly adjust the switching time, has a metering system and a clear indicator light system. There is automatic control mode to run maintenance of non-load transmitter periodically according to the appointment.
